Beschreibung

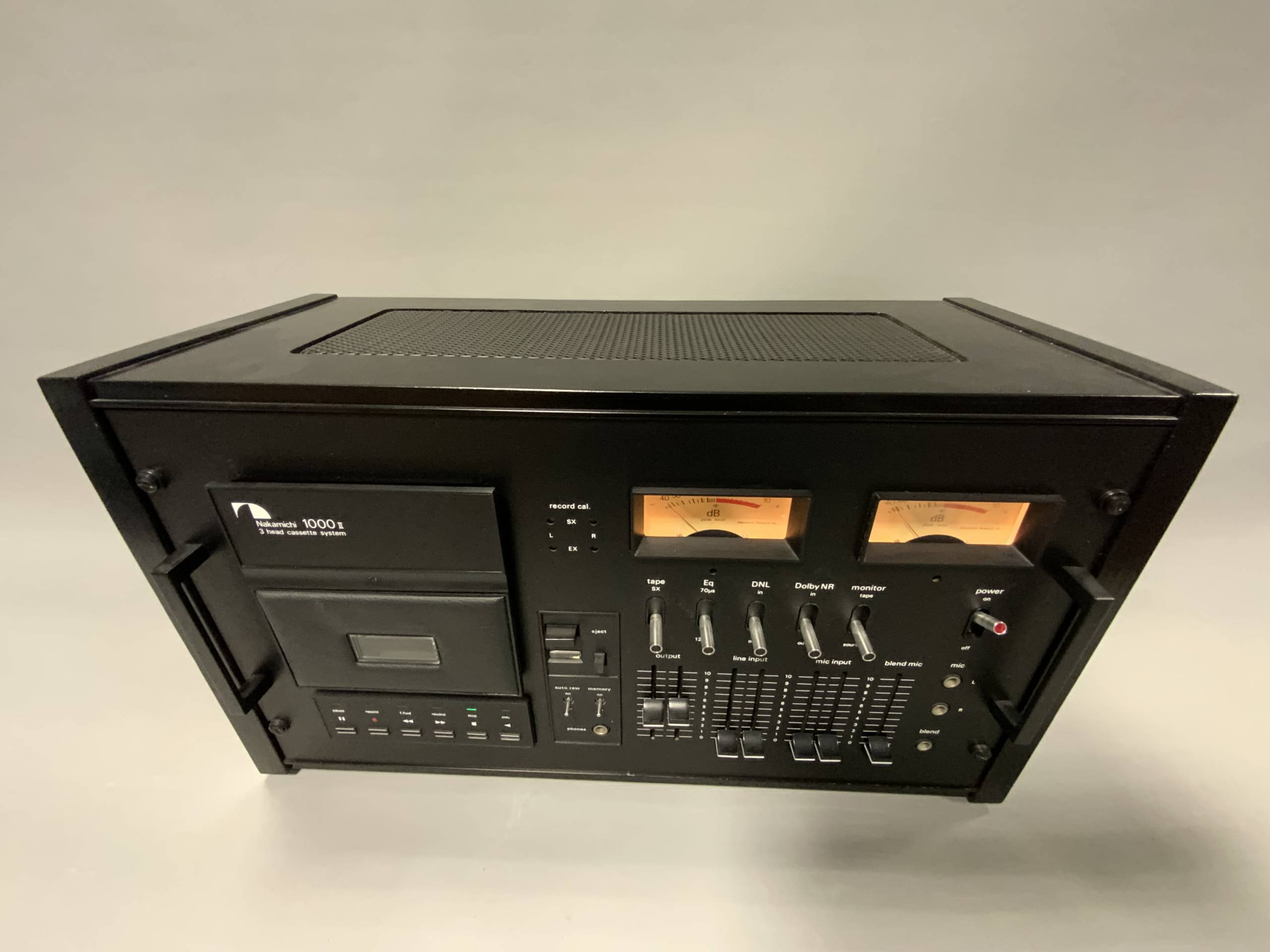

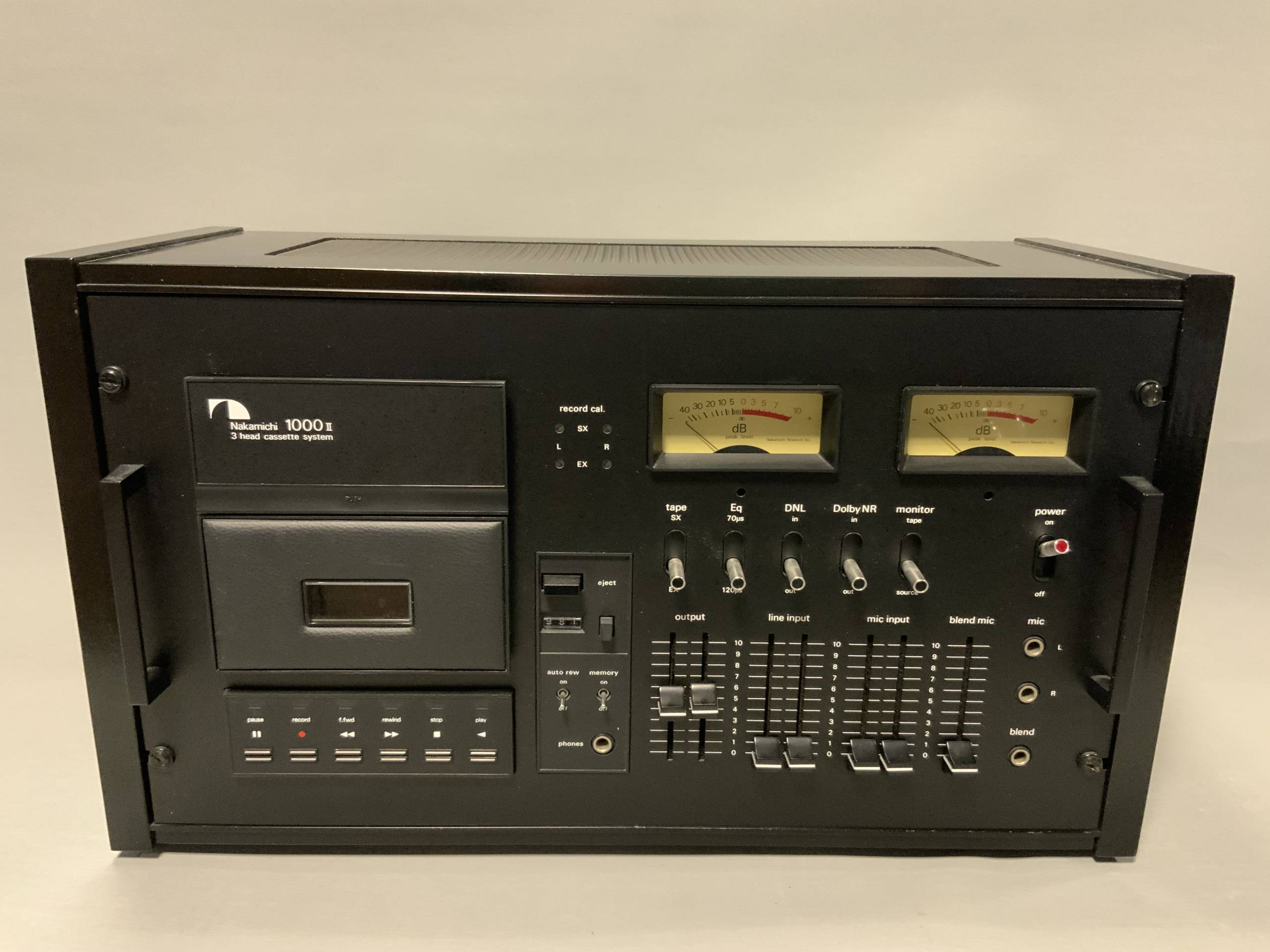

Nakamichi 1000 II seltenes professionelles Studio-Tapedeck
Integriertes Mischpult für LINE, MIC + MIC-Blend
Technische Daten:
- Frequenzgang ………………….. 20-22,000 Hz ± 3 dB (—20 dB rec. level)
- Signal-to-Noise Ratio ………………….. Better than 66 dB (IHF-A WTD RMS, ref. 400 Hz, 3%
- THD, w/Dolby NR, ZX tape, 70 Msec EQ)
- Total Harmonic Distortion …………. Less than 0.8% at 400 Hz, 0 dB w/ZX tape
- Less than 1.0% at 400 Hz, 0 dB w/SX, EXII tapes
- Wow-and-Flutter ………………………. Less than 0.08% WTD peak, 0.04% WTD RMS
- Erasure ………………………………………. Better than 60 dB below saturation level at 1 kHz
- General
- Separation………………………………….. Better than 37 dB at 1 kHz, 0 dB
- Crosstalk ……………………………………. Better than 60 dB at 1 kHz, 0 dB
- Bias Frequency ……….. ……………… 105 kHz

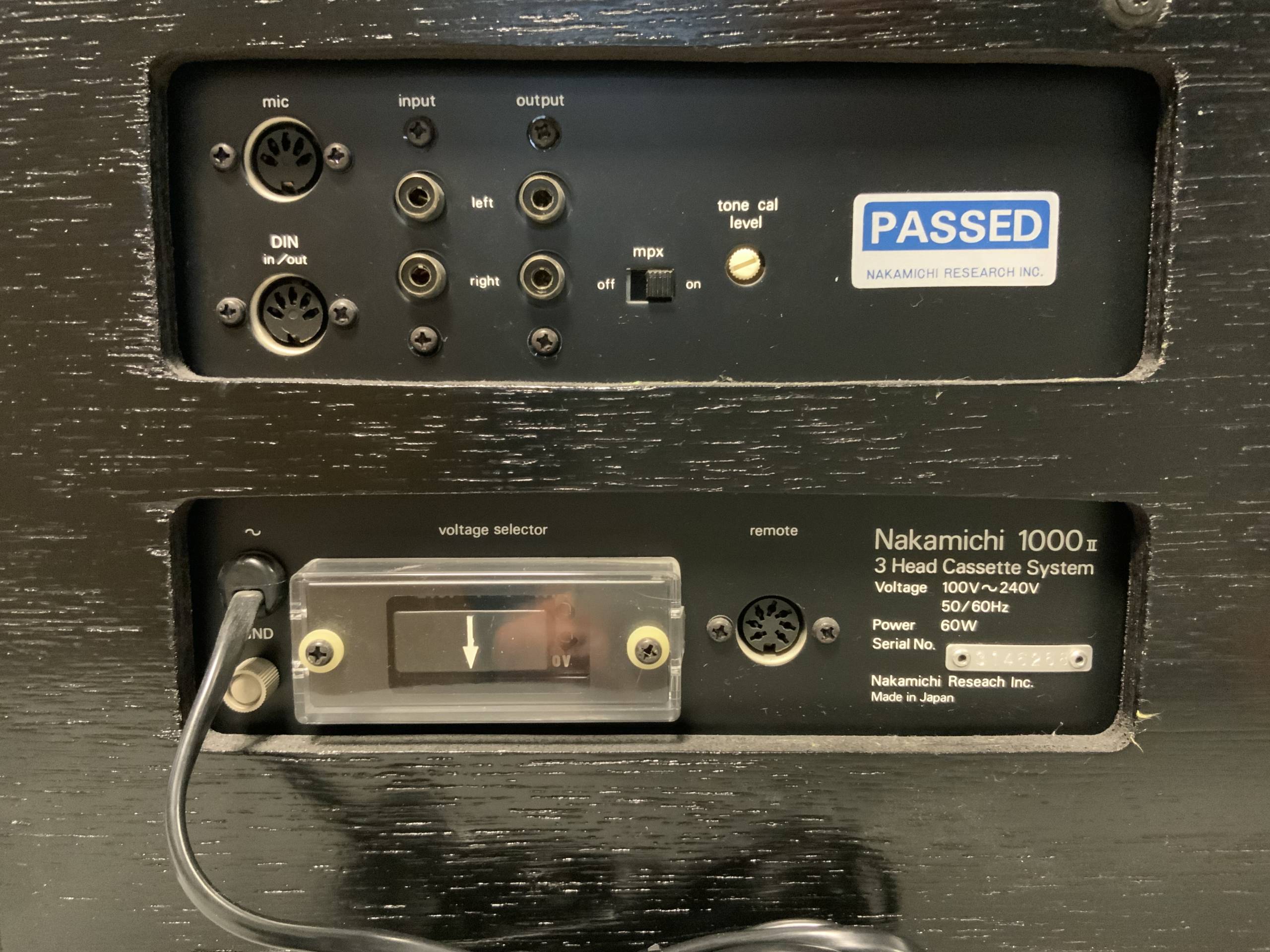

- Input ……………………………….. . . 50 mV, 50 k ohms
- Output ……………. . …………………….. 1 V (400 Hz, 0 dB, output control at max.) 3.3 k ohms
- Headphone Output …………………….. 45 mW (at 400 Hz, 0 dB, 8 ohms)
- DC Output Jack …………………………. ±10V DC, 125 mA max.
- Power Source……………………………… 100, 120, 120/220-240, 220 or 240 V AC; 50/60 Hz
- Dimensions: 20-11/16 x 11-11/16 x 8-5/8 inches
- Weight: 20 kg
- Wenig benutzt, daher absoluter Bestzustand!
- Gerät überprüft und nachgemessen, alles im Originalzustand.

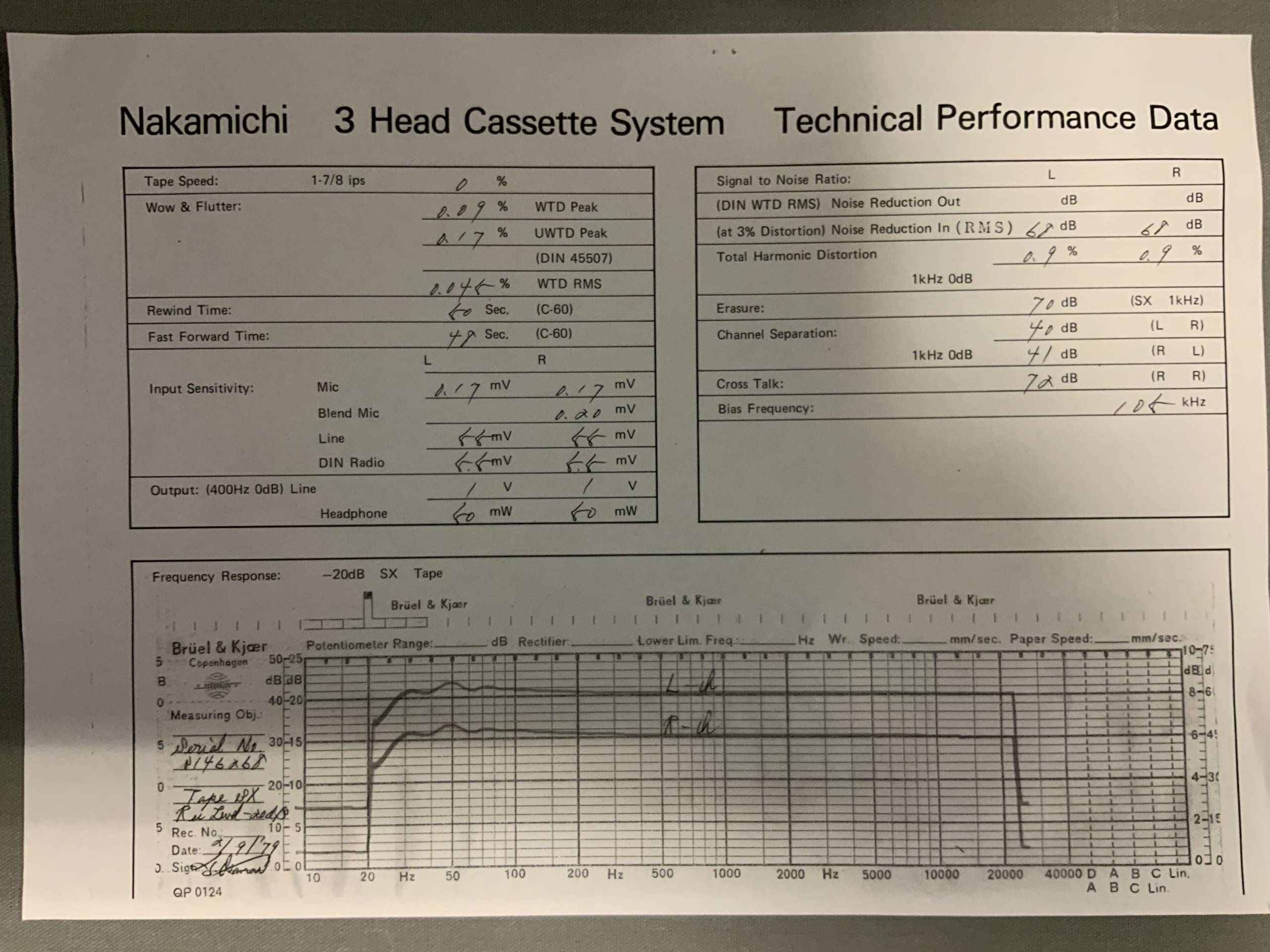

- Original-Messprotokoll beigefügt
- Originalverpackung und Bedienungsanleitung
